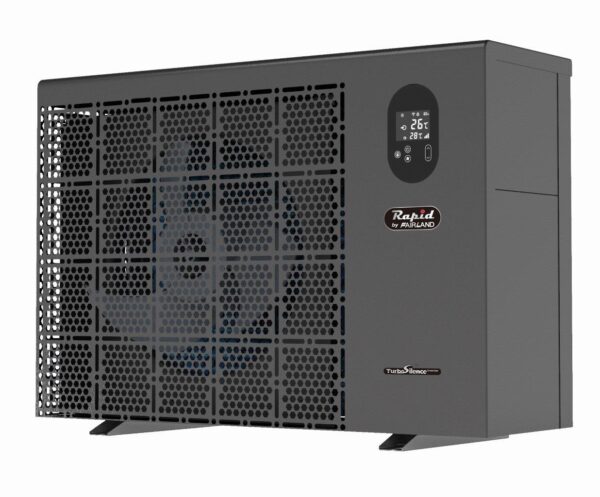

Inverter heat pump for hot tubs and swim spa pools.
Color: Black – Aluminum ; Digital display: Yes ; Heating output: 8,8 kW; Cooling: Yes ; Cooling output: 4,5 kW; Recommended pool volume: 20-40 m3; Connection: 50 mm; Defrosting: Yes ; Rated power input: 0,18-1,53 kW; Refrigerant used: R32 ; Voltage: 230 V; Efficiency: up to 15,6 C.O.P.
Rapid Inver-X is equipped with an inverter compressor and fan motor, allowing the power input and fan speed to be continuously controlled electronically according to current demand. A major advantage of this system is faster heating and the maintenance of a constant water temperature, while eliminating “cold starts”, which affect both the service life of the heat pump components and the electrical load. A C.O.P. of up to 16,5 under ideal conditions is not a marketing gimmick but is documented by a TÜV Rheinland certificate
Combining “Full-Inverter” technology with new, improved components has achieved better heat exchange and air circulation. The new chassis, upgraded evaporator and insulated compressor enable an immediate 20% increase in heating output without increasing noise or energy consumption.
Three intelligent modes:
- Boost: 120% output – thanks to TurboSilence technology
- Smart
- Silence
When Rapid Inver-X operates at medium or low speed to maintain the temperature of the hot tub or swim spa pool, compressor noise is extremely low and, depending on the size of the swim spa pool, it achieves a COP efficiency of up to 15,5 (at an air temperature of 26°C, water temperature of 26°C and air humidity of 80%)
Built-in Wi-Fi module
Cooling output: 4,5 kW
| Performance: Air 26°C, Water 26°C, Humidity 80% | |
| Heating output (Smart mode) | 8,8 kW |
| Heating output (Booster mode) | 10,5 kW |
| COP | 15,6-7,3 |
| COP (50% output capacity) | 11,8 |
| Performance: Air 15°C, Water 26°C, Humidity 70% | |
| Heating output (Smart mode) | 6,3 kW |
| Heating output (Booster mode) | 7,5 kW |
| COP | 7,1~4,9 |
| COP (50% output capacity) | 6,7 |
Technical specifications
| Product type: | Inverter heat pump for hot tubs and swim spa pools |
|---|---|
| Color: | Black – Aluminum |
| Digital display: | Yes |
| Heating output: | 8,8 kW |
| Cooling: | Yes |
| Cooling output: | 4,5 kW |
| Recommended pool volume: | 20-40 m3 |
| Connection: | 50 mm |
| Defrosting: | Yes |
| Rated power input: | 0,18-1,53 kW |
| Refrigerant used: | R32 |
| Voltage: | 230 V |
| Efficiency: | up to 15,6 C.O.P. |
| Body material: | Aluminum |
| For salt water up to 5 g/l (<0,5%): | Yes |
| Net/shipping weight kg: | 59 kg |
| Net unit dimensions (w/l/h): | 799x432x650 mm |
| Operating temperature: | – 15 to 43 °C |
| Flow monitoring: | Yes |
| Coil material: | Titanium |
| Energy savings: | Yes |
| Rated current: | 0,78-6,65 A |
| Heat exchanger: | Plastic |
| Recommended water flow: | 2-4 m3/h |
