Colour: Dark grey; Heat output: 6 kW; Cooling: Yes; Recommended pool volume: 14-28 m3; Connection: 50 mm; Rated power input: 0.19 kW; Refrigerant: R32; Voltage: 230 V; Efficiency: 9 C.O.P.

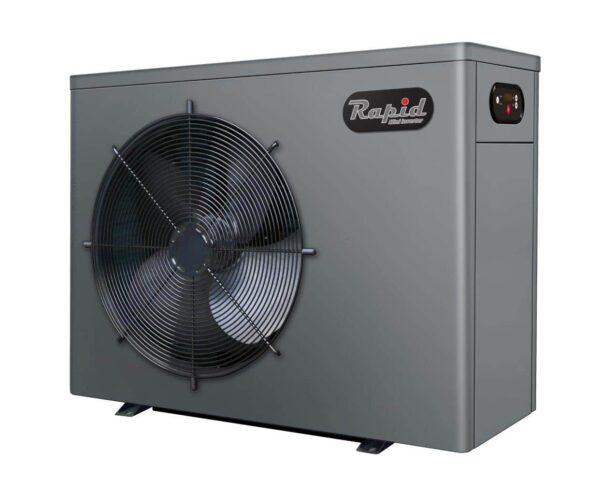

Rapid Mini Inverter with STEP technology – INVERTER for hot tubs and swim spa pools.
Rapid Mini Inverter is a heat pump for hot tubs and swim spa pools with step-inverter technology. This means they allow manual power setting – they have variable speed. Thanks to the „step compressor“, the heat output can be adjusted from 20% to 100% intelligently according to various heating requirements. .
At the start of the season the Rapid Mini Inverter heat pump runs at 100% to reach the set water temperature, and during the season its output is variable, running only at the power necessary to maintain the desired temperature.
The average COP of RMIC is 9. So from every 1kW consumed it can return up to 9kW of heat.
These heat pumps now use R32 refrigerant.
Technical parameters
| Colour: | Dark grey |
|---|---|
| Heat output: | 6 kW |
| Cooling: | Ano |
| Recommended pool volume: | 14-28 m3 |
| Connection: | 50 mm |
| Rated power input: | 0,19 kW |
| Refrigerant used: | R32 |
| Voltage: | 230 V |
| Efficiency: | 9 C.O.P. |
| For salt water up to 5 g/l (<0.5%): | Ano |
| For salt water over 5 g/l (>0.5%): | Ano |
| Net/transport weight kg: | 42 kg |
| Net unit dimensions (w/l/h): | 744x359x648 mm |
| Operating temperature: | 0 – 43 °C |
| Flow monitoring: | Ano |
| For sea water: | Ano |
| Easy installation: | Ano |
| Rated current: | 1.26 – 4.2 A |
| Heat exchanger: | Titan |
| Digital control panel: | Ano |
