LX LP300 2,2 kW / 3 HP massage pump for hot tubs and swim spa pools
The LX LP300 pump is a powerful single-speed massage pump designed for the jets of hot tubs, whirlpool baths, swim spa pools and smaller pool/spa systems. It is used as the main jet pump or booster pump where a high flow rate and powerful massage are required.

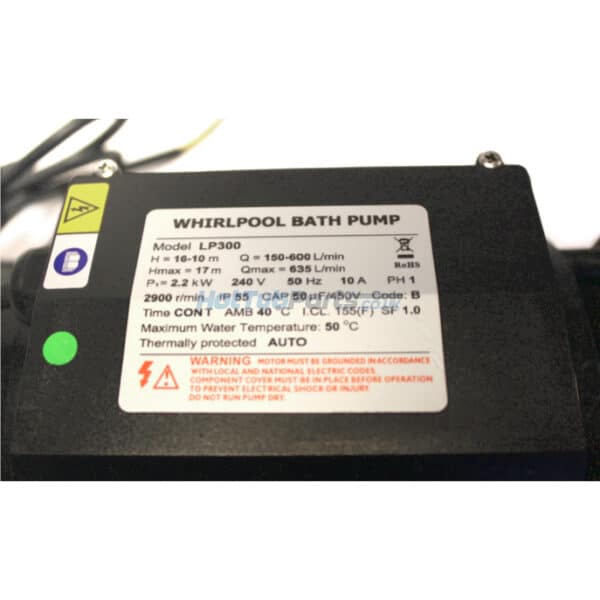

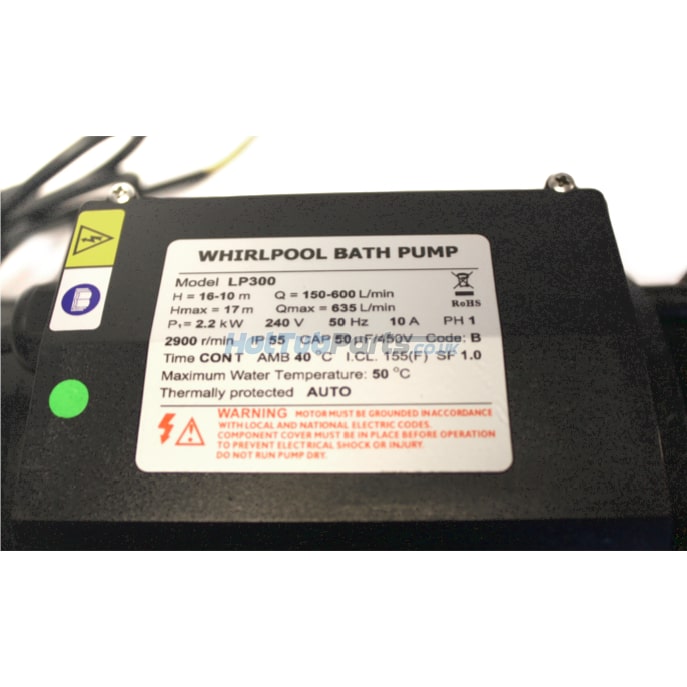

If you are replacing an old pump, the most important step is to compare the information on the rating plate. Customers often search for this model under the designations LX LP300, LX Whirlpool LP300, LP300-I, LX-LP300, Wellis ACM0080 or Canadian Spa CSCLP-300. For some hot tubs, a similar pump also appears in searches for replacement parts for Hanscraft, Canadian Spa, Wellis, Superior Spas, Passion Spas, MAAX Spas, Jazzi, Monalisa, JNJ, AMC/Winer and other manufacturers. However, the hot tub brand name alone is not enough – the specific rating plate, connections and installation configuration are always decisive.
Key parameters for comparison
- Model: LX LP300
- Power: 2,2 kW / 3 HP
- Power supply: 220-240 V / 50 Hz
- Current: approximately 10 A
- Speed: approximately 2 850-2 900 rpm
- Flow rate: up to approx. 635 l/min
- Connection: 2" / approx. 60 mm, with some sources specifying an external thread of approx. 78 mm
- Type: single-speed massage / jet pump
- Use: hot tub jets, booster, main massage pump
When the LX LP300 is a suitable replacement
This pump is a suitable replacement if you find the same or very similar specifications on the original pump: LP300, 3 HP, 2,2 kW, 230 V / 50 Hz, 10 A and a connection of around 2". It is often considered as a replacement for pumps sold under a different hot tub brand, such as Wellis ACM0080 or Canadian Spa CSCLP-300.
For older installations, we also recommend checking the cable length and type, the connector for the control unit, the discharge position, the pump dimensions and the installation space. The wet end on these pump types can usually be rotated, allowing the discharge to be adapted in some installations, but it is always better to compare it with the original unit in advance.
Searching by hot tub brand?
Hot tub owners often search for the brand of the entire hot tub rather than the pump number. We therefore also list the most common search combinations: pump for Hanscraft hot tub, Canadian Spa LP300 pump, Canadian Spa CSCLP-300, Wellis ACM0080, Superior Spas ACM0080, LX pump 3HP, LP300 2.2 kW, 3HP 230V massage pump or replacement pump for 2" hot tub. If you are unsure, send us a photo of the old pump’s rating plate and pipe connections – we will verify suitability before you order.
What to check before ordering
- Compare the model and power on the old pump’s rating plate.
- Check the voltage of 220-240 V / 50 Hz and current of around 10 A.
- Verify the connection diameter, seals and space for the union nuts.
- Check whether you need the same cable connector or whether the original cable will be reconnected.
- Make sure it is a single-speed pump for the jets, not a circulation pump for filtration.
IDOL SPAS tip: The quickest way to verify compatibility is with a photo of the old rating plate, the entire pump and the pipe connections. This allows us to determine whether the LX LP300 is the right choice or whether a different model is needed.
